SPECIFICATIONS

Brand Name: RightSitu

Certification: CE,FCC,RoHS

Choice: yes

High-concerned chemical: None

Model Number: TH01/ZTH01

Origin: Mainland China

Smart home platform: Tuya

Product Features:

1. High precision.
The sensor uses top suppliers. It can guarantee the high precision of the measurement data.
2. Real-time monitoring and recording.
The sensor will monitor the temperature and humidity in real time. You can view the changes in the value on the APP.
Record the temperature and humidity changes on the APP, and use the graphics to show you.
3. Scene linkage
The sensor can be used as the temperature and humidity data source of Tuya Smart, Smart Life, Alexa, Google Home. You can do many automated processes based on the data source.
4. Third-party voice support.
The sensor supports Alexa, Google Home Asistant. You can check the current temperature and humidity by voice.

Product Parameter:

Power Supply: LR03-1.5V/AAA*2(not included)
Temperature Measure Range: -20℃-60℃
Temperature Accuracy: ±1
Humidity Measure Range: 0% RH~99% RH
Humidity Accuracy: ±1% RH
NOTE: Rechargeable 1.2V battery may cause inaccurate power measurement.

Additional instructions at the end of page

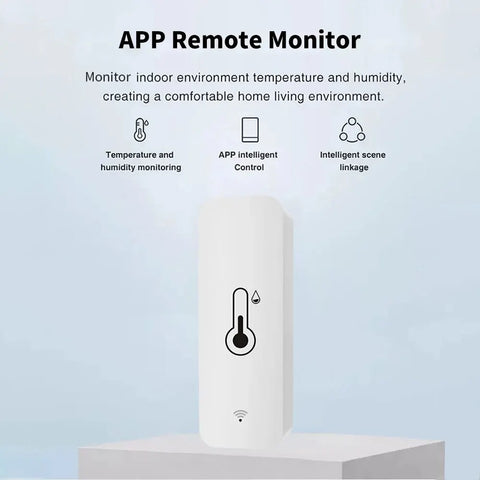

APP Remote Monitor

When the sensor is registered to the APP and connected to the Internet, you can monitor the temperature and humidity of the room in real time anywhere in the world.

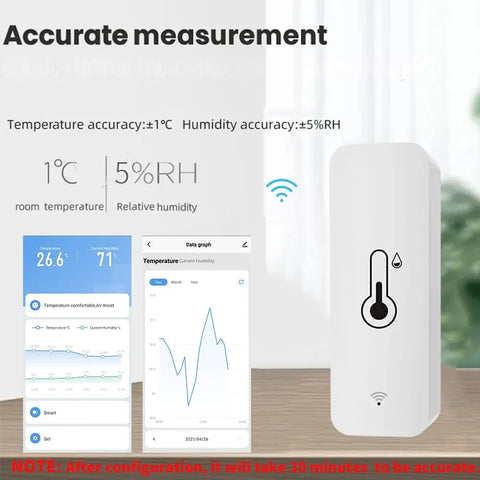

Accurate Measurement

NOTE:
After configuration, it will take 30 minuters to be accurate.

Work with Alexa, Google Home

After connecting Alexa and Google home, you can query the current temperature and humidity by voice.
NOTE:
1. Because Alexa and Google home do not provide corresponding development interfaces, the temperature and humidity cannot be displayed correctly or not displayed on them.
2. It is not possible to create a Route or an automated process on Alexa or Google Home by temperature or humidity. (Only support to create an automated process in Smart Life or Tuya Smart)
3. But you can query the current temperature and humidity by voice.

Application Scenarios

You can install the sensor wherever you need (WiFi connection network is required).

APP Pages Show

Tips for purchase

About Update Frequency

1. The sensor uses a trigger mechanism. When the temperature or humidity changes to the set value, the sensor will report the data immediately. Generally, the data is updated once an hour.

2. The sensor cannot set the update report data frequency.

3. The sensor cannot set alarm. The alarm function is set on the APP.

If you need to update data in real time, please purchase a USB powered version(TH06/TH16).

About Proper Selection and Use of Batteries

1. Only LR03-1.5V alkaline battery can be used (1.2V rechargeable battery may cause the equipment to detect wrong voltage and report low voltage)

2. Batteries of different models or brands cannot be mixed.

4. New and old batteries cannot be mixed.

5. It is prohibited to use inferior batteries.

Otherwise: 1. Configuration fails; 2. Battery consumption is too fast.

How to obtain high-quality battery? Please buy in a regular supermarket or chain supermarket.

Note: After the device configuration is completed, it needs to be placed in a position where the wireless signal is good, otherwise the device signal power will become larger, which will lead to excessive battery consumption.

About Network Testing

Devices using the network consume a lot of power. To ensure the service life of the battery, the device will stop using the network when it does not need to report data

Therefore, it is meaningless to test the network signal of sensors in APP.

Error on temperature and humidity

1. All temperature and humidity sensors will have certain errors, please note. The temperature error of this sensor is ± 1 ℃, and the humidity error is ± 5% RH. Any value within this range is normal.

2. The sensor error and manufacturing process will meet, and there will also be some errors between products of the same model.

3. According to Newton's third law, heat conduction takes a certain time. The sensor needs 30 minutes or 1 hour to be consistent with the room temperature, and the measurement will be accurate.

Historical curve of temperature and humidity

1. The minimum granularity of historical data (daily chart) is 1 hour, and the minimum granularity of exported data is also 1 hour.

2. Days of historical data are stored for 7 days.

3. The value of historical data is the average value. That is, the average value of a minimum granularity time.

Support for third-party smart speakers

1. Because the third-party smart speakers (Google Home/Alexa) do not have control panels corresponding to temperature and humidity sensors,

Therefore, the APP of third-party smart speakers may not display the temperature and humidity correctly.

But we have developed voice query function. Therefore, the current temperature and humidity can be queried by voice

2. Route or automatic process related to temperature and humidity cannot be established on the third-party smart speakers.

3. The device does not support Yandex Alice.

Trigger mechanism of temperature and humidity in automatic process

We used Edge Triggered (ET)

That is, the action can only be triggered if the condition crosses the set condition.

A: For example, turn on the light when the automatic setting temperature is greater than 25 ℃.

A.1. When the temperature rises from below 25 ℃ to 25 ℃, the automatic process can trigger the ON light.

A.2. After the automatic process is set, the temperature is always above 25 ℃, and the lamp is not turned on.

B: For example, when the automatic setting temperature is less than 20 ℃, turn on the light.

B.1. When the temperature drops from above 20 ℃ to 20 ℃, the automatic process can trigger the start lamp.

B.2. After the automatic process is set, the temperature is always below 20 ℃, and the lamp is not turned on.

When will the battery consume quickly

1. The correct type of battery is not selected, or the battery is mixed.

2. The sensor shall be installed at the location where the ambient temperature or humidity changes dramatically. In this environment, the device will frequently start the network to report data.

3. The sensor is installed in a low temperature environment for a long time (such as less than 0 ℃), and the battery performance will decline rapidly at this temperature.

4. The sensor is installed at a location where the network signal is very poor. When the network signal is poor, the equipment will increase the transmission power of the signal, resulting in increased power consumption.

5. The equipment is in a high humidity environment for a long time, which will corrode the battery and cause battery leakage.

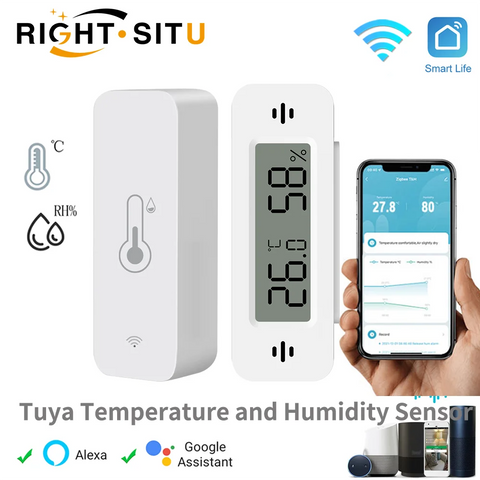

Tuya WiFi Smart Temperature And Humidity Sensor Battery Powered ZigBee Smart Home Security Work With Alexa Google Home
