SPECIFICATIONS

Battery Included: Yes

Brand Name: GGBEE

Certification: CE

Choice: yes

Communication method: RF

Does It Includes Wireless Communication: Yes

Function: When you press the remote control, the switch makes a TI TA sound.

High-concerned chemical: None

Inbox adaptor: No

Keywords 1: smart switch

Keywords 2: light switch

Keywords 3: wireless switch

Model Number: 433Mhz RF Remote Control Switch

Origin: Mainland China

Power Source: AC&DC,AC&DC

Scope of application: water pump

State of Assembly: Ready-to-Go

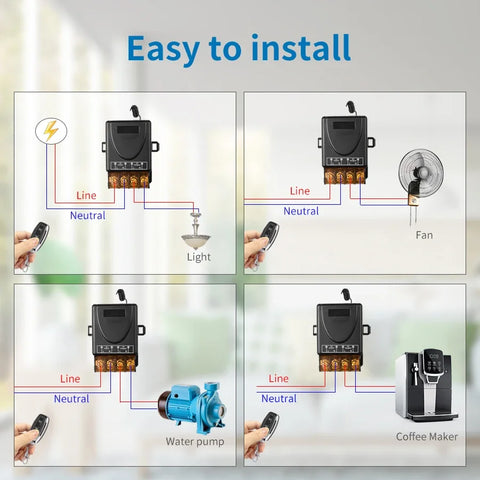

Wiring mode: 1 in 4 out

maxload: 30A

voltage: AC 75-220V DC 9-72V

working distance: 100m(In Open area)

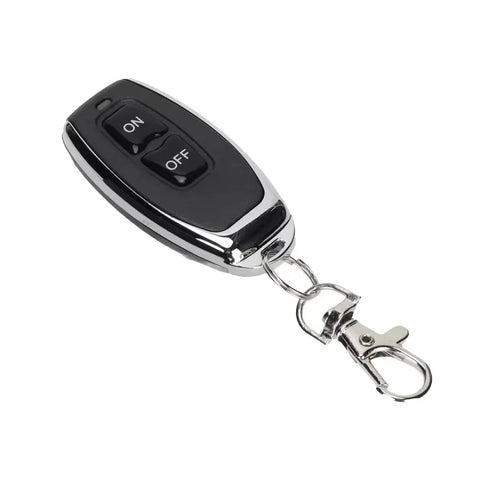

Transmitter(Remote control):

Operating voltage: DC12V (23A/12V battery x1)
Transmitting frequency: 433MHz
Encoding Type: Fixed code
Receiver sensitivity: > -105dB
Transmission distance : 100M (Open field)
Size: approx 55*28*10mm

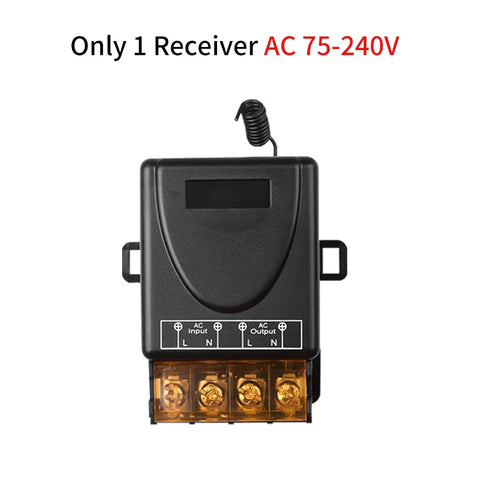

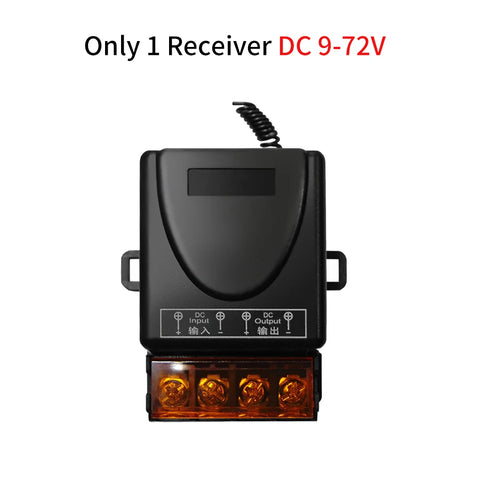

Receiver:

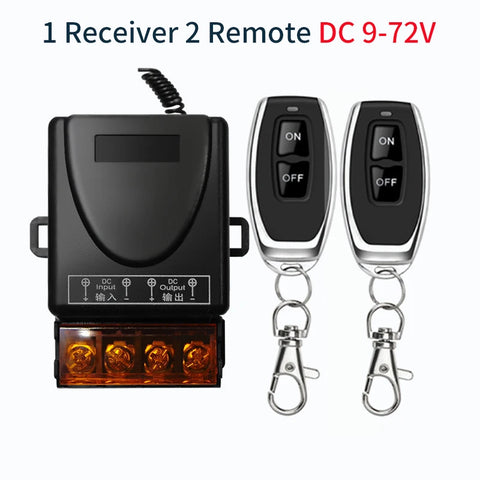

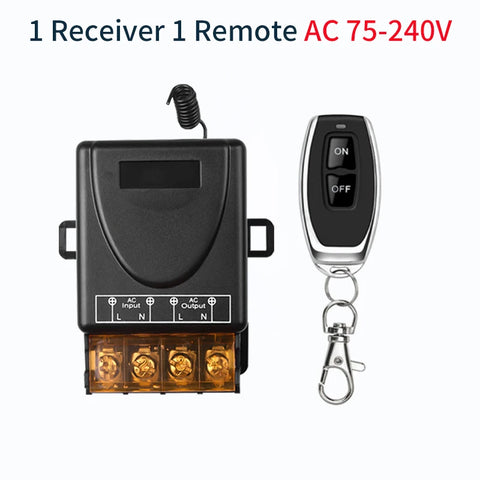

Operating voltage: AC 75V - 240V DC 9-72V
Output voltage = Operating voltage
Operating frequency: 433MHz(Same with Remote control)

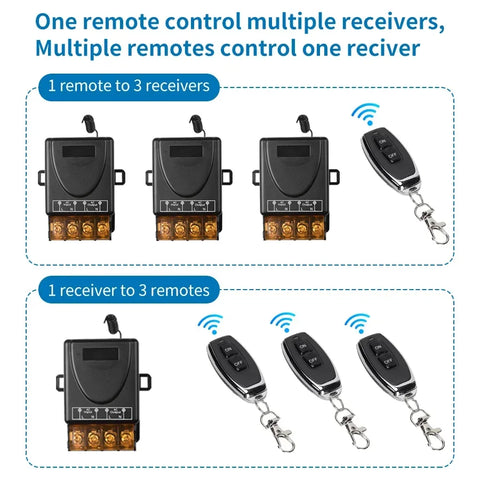

Encoding Type: learning code(you can buy extra 315MHz remote controllers for this receiver)

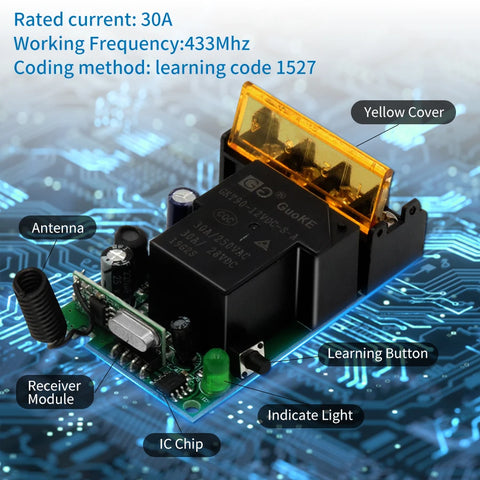

Rated contact current of relay: 15A/240VAC, 15A/110VAC
Box size: approx 65 x 45 x 28mm

Please notice that:

Although the relay is marked 30A 240VAC. The 30A is for the peak current of your load. The rated current of your load should less than 15A.

About Learning and clearing Method:

Input 12V for the Receiver ,
Momentary: press the Learning Button 1 time. the Led indicator flash 1 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Toggle: press the Learning Button 2 time. the Led indicator flash 2 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Latched: press the Learning Button 3 time. the Led indicator flash 3 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (5S): press the Learning Button 4 time. the Led indicator flash 4 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (10S): press the Learning Button 5 time. the Led indicator flash 5 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Delay time (15S): press the Learning Button 6 time. the Led indicator flash 6 time, Then press transmitter, the Led indicator flash for 3 times, learning successfully.
Clearning: Press the Learning button 8S . Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code

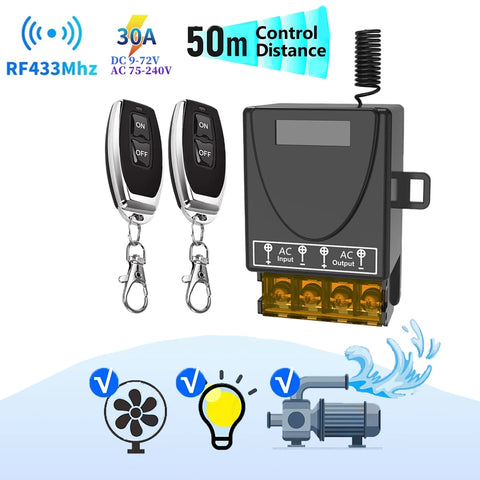

RF 433Mhz Smart Switch Wireless Remote Control Switch AC 75-220V 30A High Current Relay for Water Pump Motor Lights Door Access
